Focuser drawings

Up


Click image to access full-sized drawings

Tip:

  • Left click to display drawing
  • Right-click / "Save Target As" to download drawing

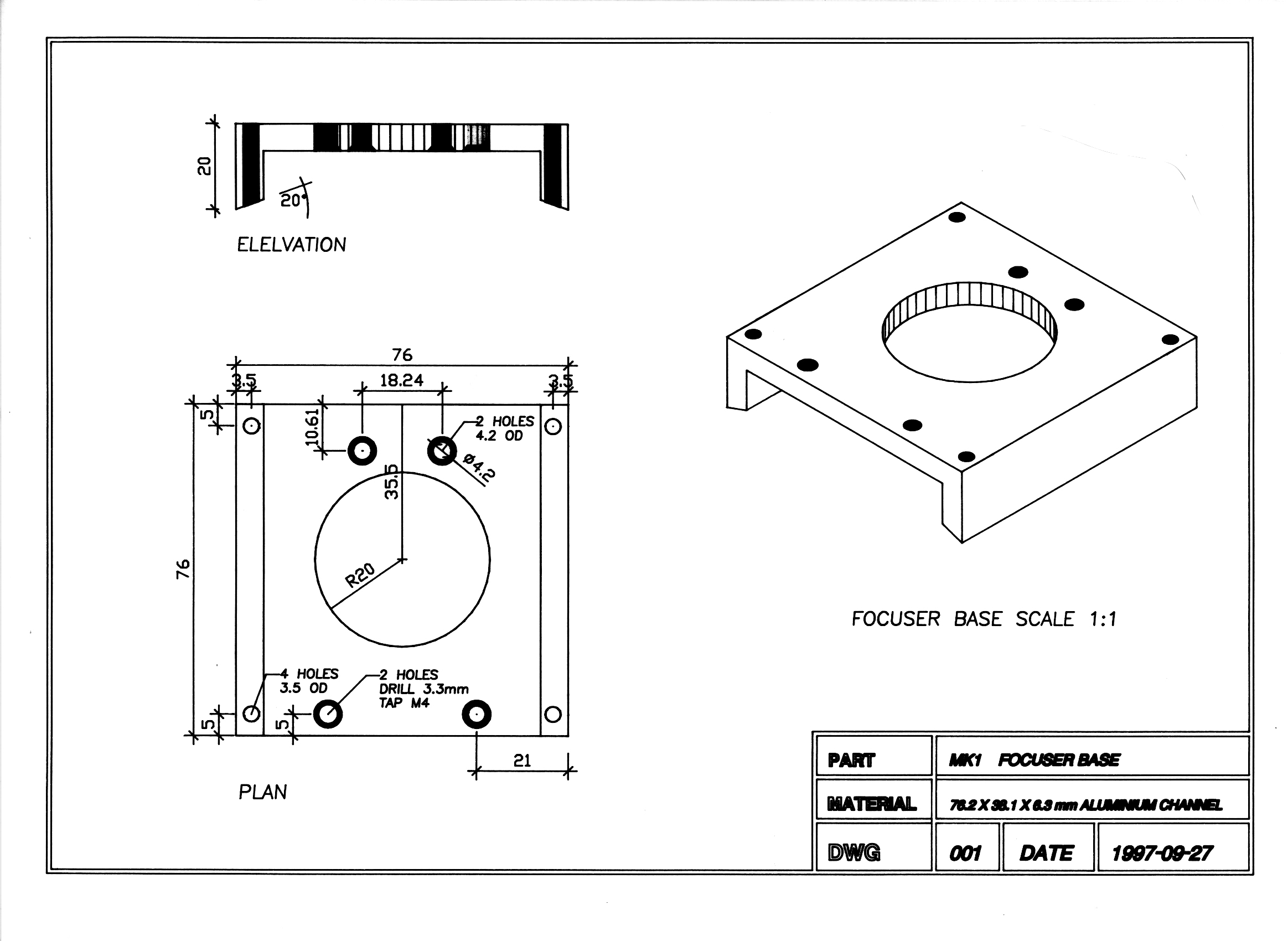

1. Base

(526k jpg)

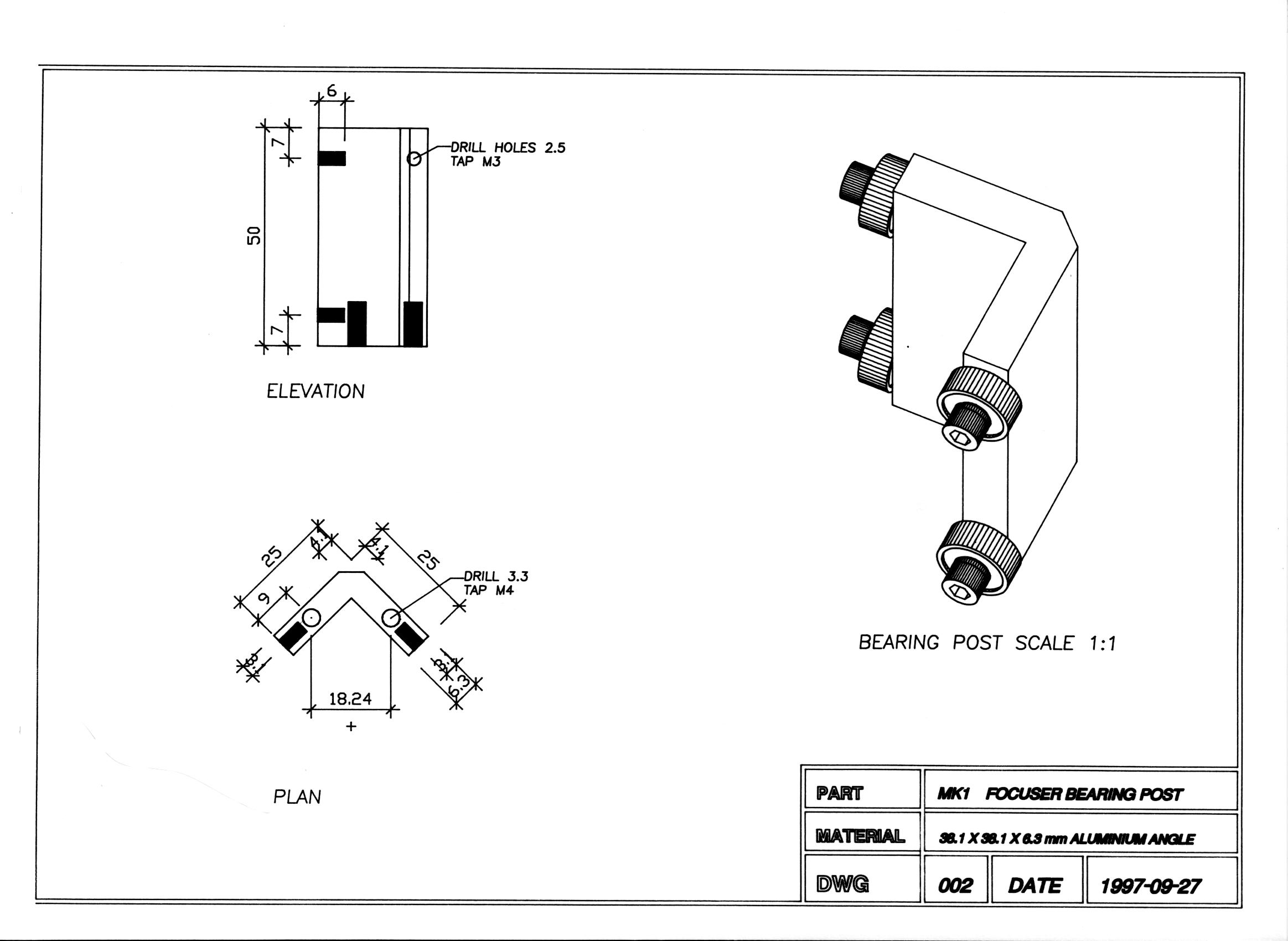

2. Bearing Post

(476k jpg)

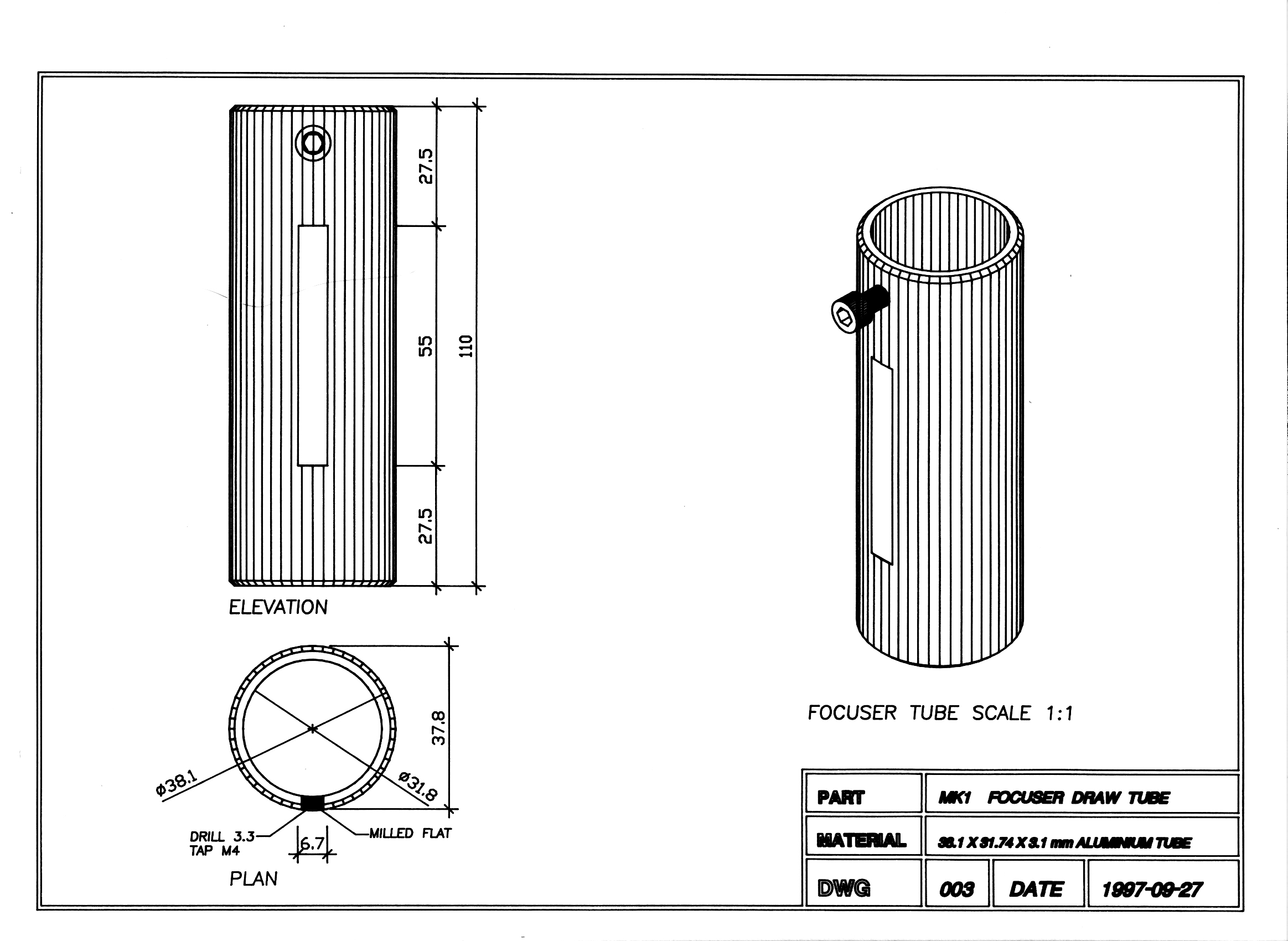

3. Draw Tube

(682k jpg)

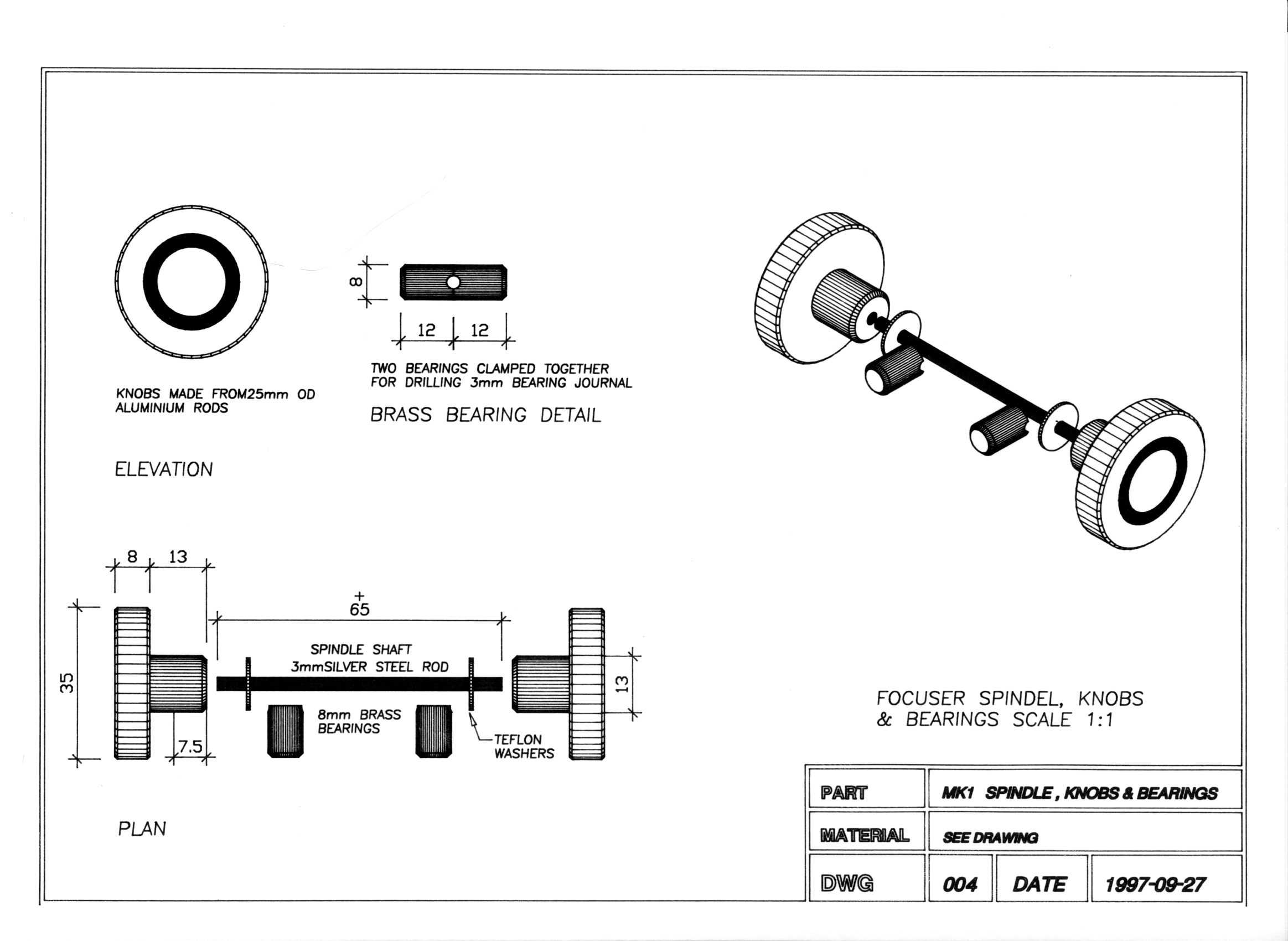

4. Spindle, Knobs,

Bearings (567k jpg)

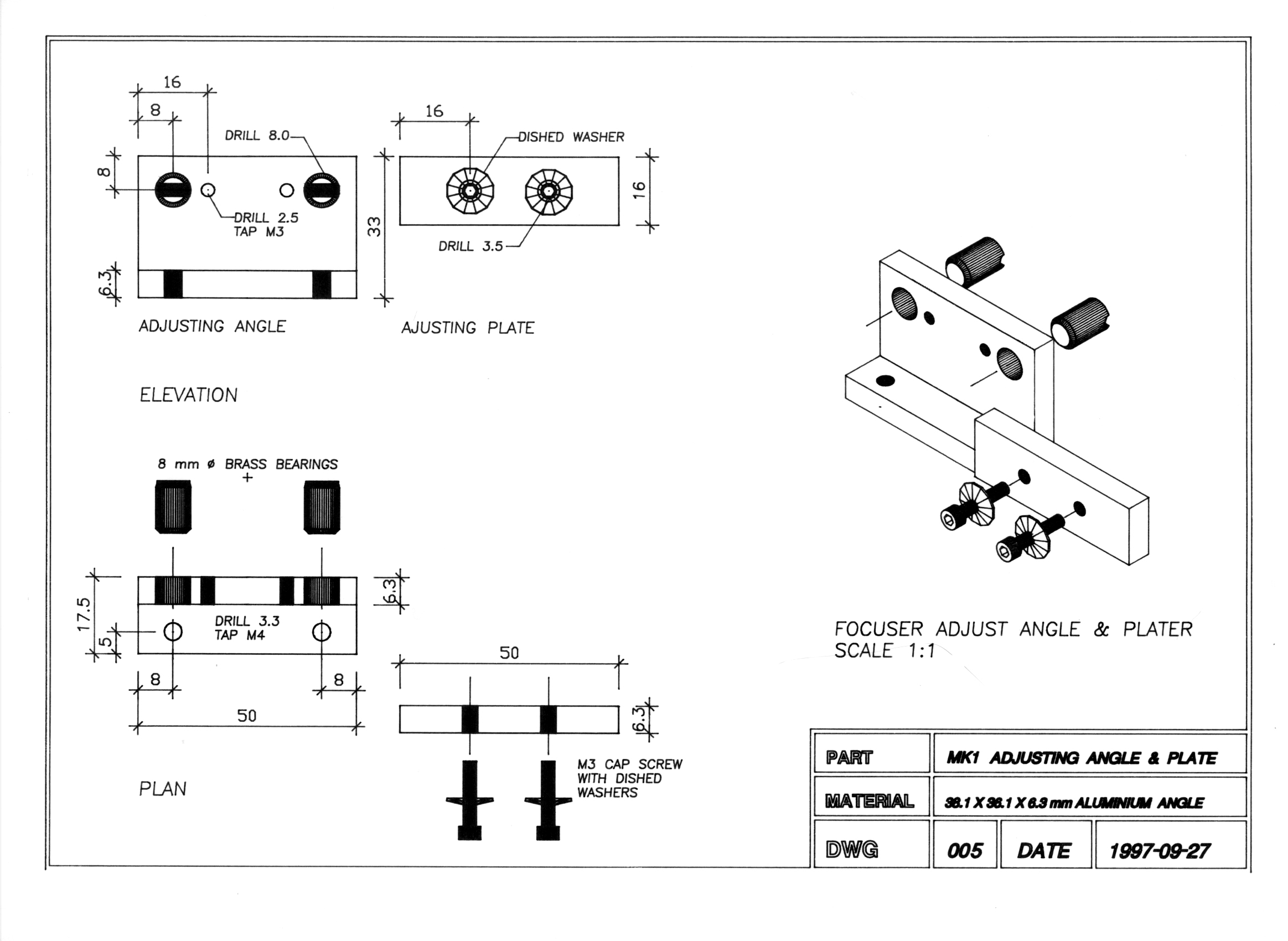

5. Angle & Plate

(525k jpg)

6a. Perspective A

(611k jpg)

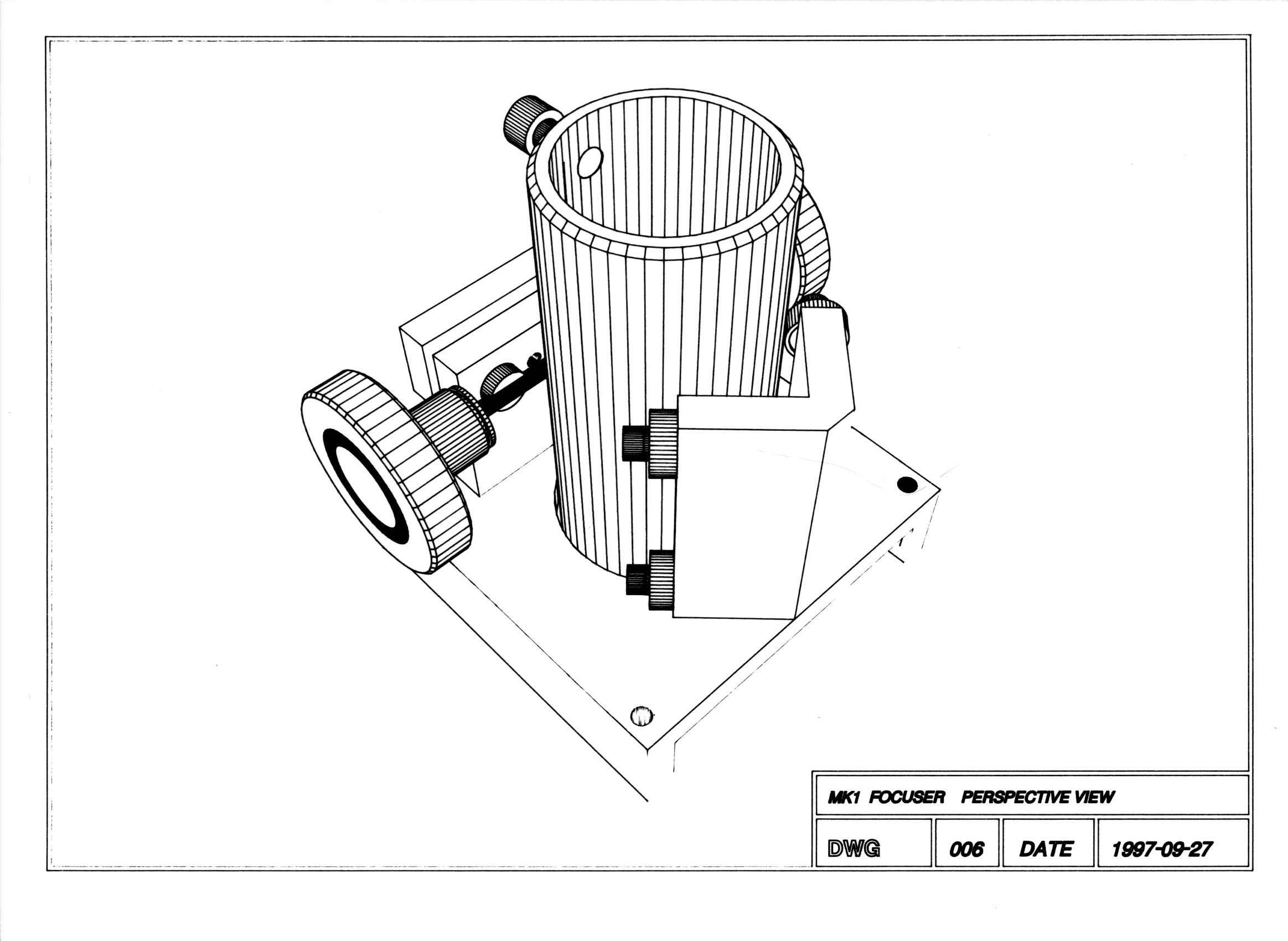

6b. Perspective B

(552k jpg)

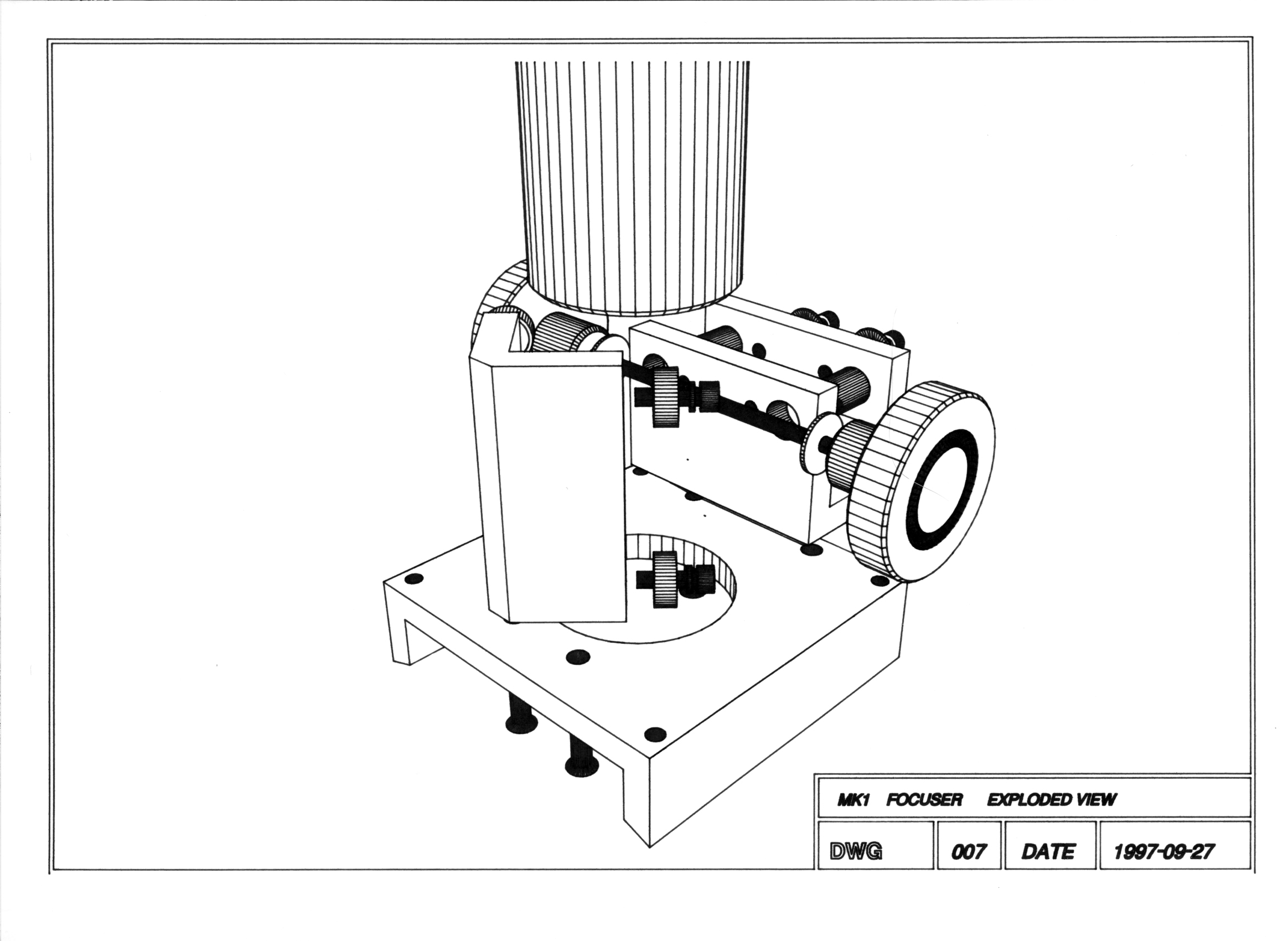

7a. Exploded View A

(497k jpg)

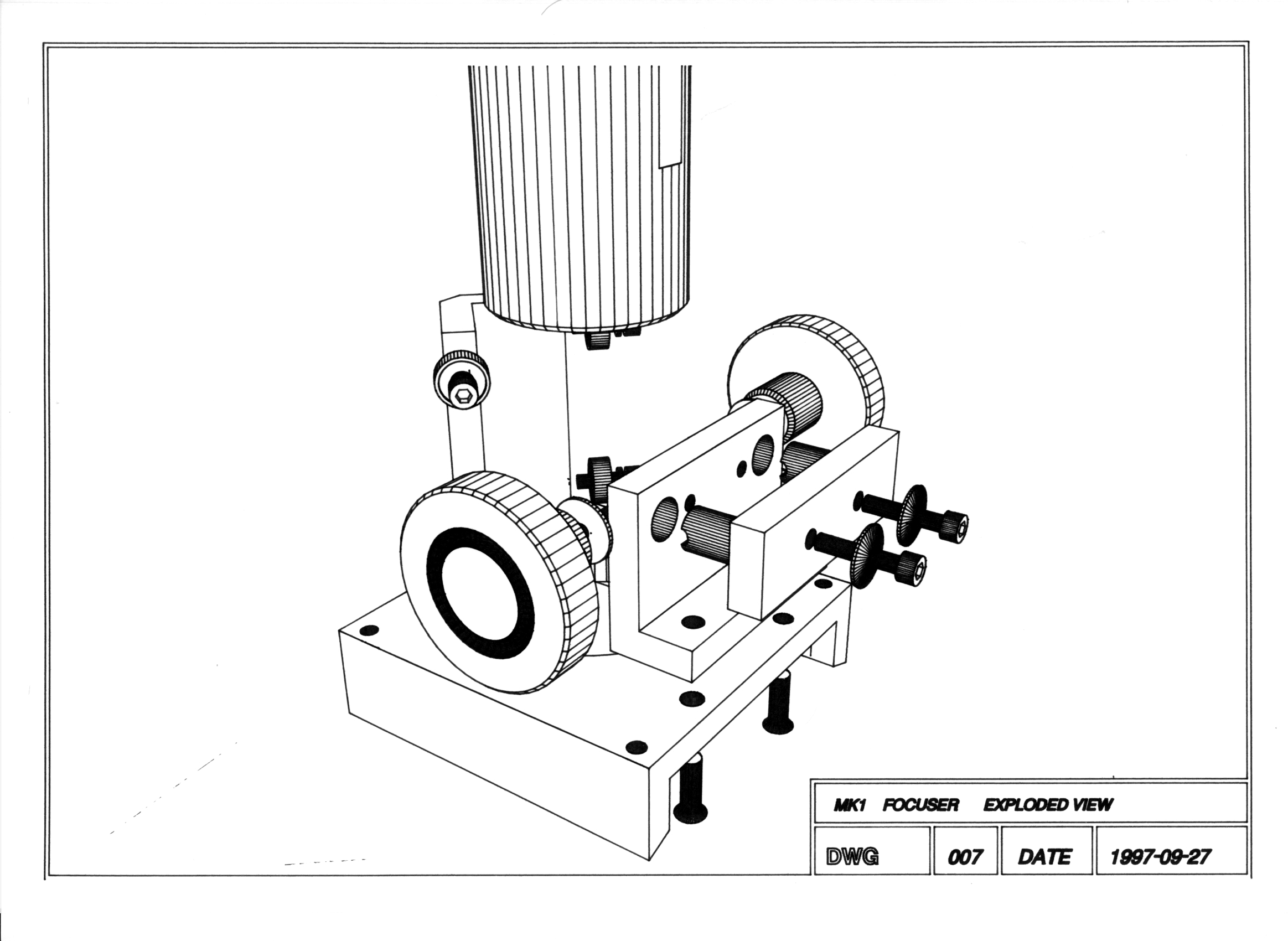

7b. Exploded View B

(511k jpg)

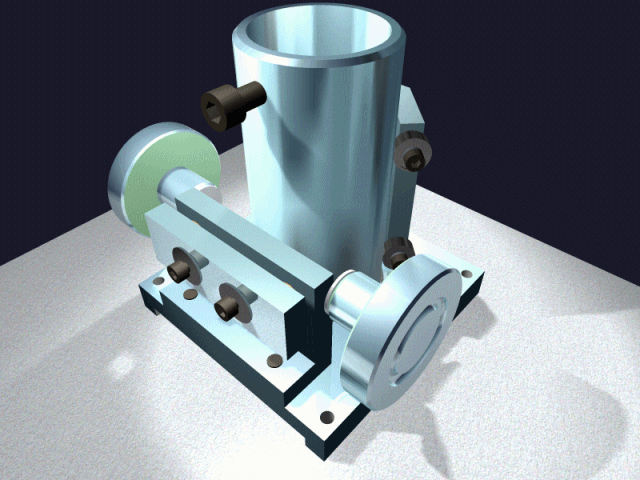

8. Rendered A

(135k gif)

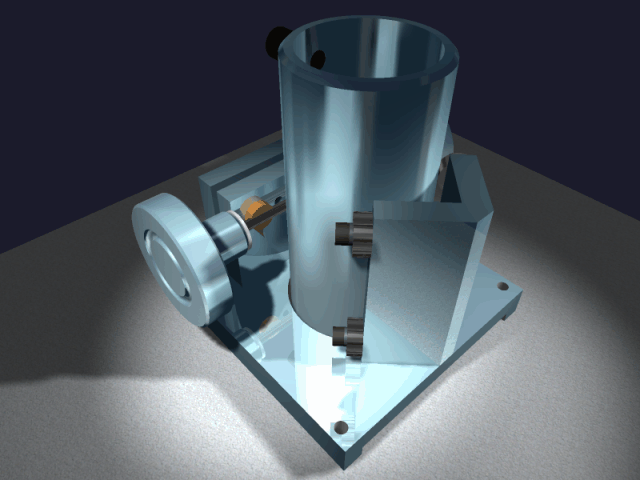

9. Rendered B

(137k gif)

10. Materials List & Notes (MS-Word)
